FIVE-AXIS ADJUSTABLE SELF-CENTERING VISE (ASC-S)


  • Significantly upgrade CNC 5-Axis Machines
  • Special 45° dovetail structure with teeth
  • The patented calibration system can regulate clamping center easily and rapidly
        • 1.Vise body is made of High quality Steel (S50C) and its slideways gone through high-frequency hardening to achieve HRC50, which makes the whole part durable.
        • 2.Detachable jaws are made of High quality Tool Steel (SCM440) and gone through carburizing to achieve HRC55. Since both sides are fixed size and able to be used as a datum, users can reverse them to increase clamping range.
        • 3.The vise's clamping force can achieve 1300KG, the repeatability positioning precision of its clamping center is within 0.015mm.
        • 4.Users can calibrate the clamping center of vise by adjusting the screws on both ends.
        • 5.The 45° dovetail structure with teeth on the upper jaw ensures the bottom of the workpiece to be firmly clamped.

5th axis self-centering vise




SPECIFICATIONS (Material: Vise body S50C: HRC50 / Detachable Jaws SCM440: HRC55 )
Unit: mm

Model

ABCC1C3DEFGHI
ASC-77x102S704328328010M61021077712
ASC-77x130S70435660108-M61301357712
ASC-77x170S70439610014810M61701757712
ASC-77x210S704313614018810M62102157712
ASC-127x160S8755707513616M616016512714
ASC-127x210S875512012518616M621021512714
ASC-127x260S875517017523616M626026512714
ASC-127x310S875522022528616M631031512714
ASC-127x360S875527027533616M636036512714
ModelJJ1KK1K2LMPull Stud (N)OPWeight (kg)
ASC-77x102S29.52418327735242152.8
ASC-77x130S29.52418607735242153.5
ASC-77x170S29.524181007735242154.2
ASC-77x210S29.524181407735242154.9
ASC-127x160S2.59.529207512639690249
ASC-127x210S2.59.52920125126396902411
ASC-127x260S2.59.52920175126396902413
ASC-127x310S2.59.52920225126396902415
ASC-127x360S2.59.52920275126396902417


OPTIONAL ACCESSORIES:

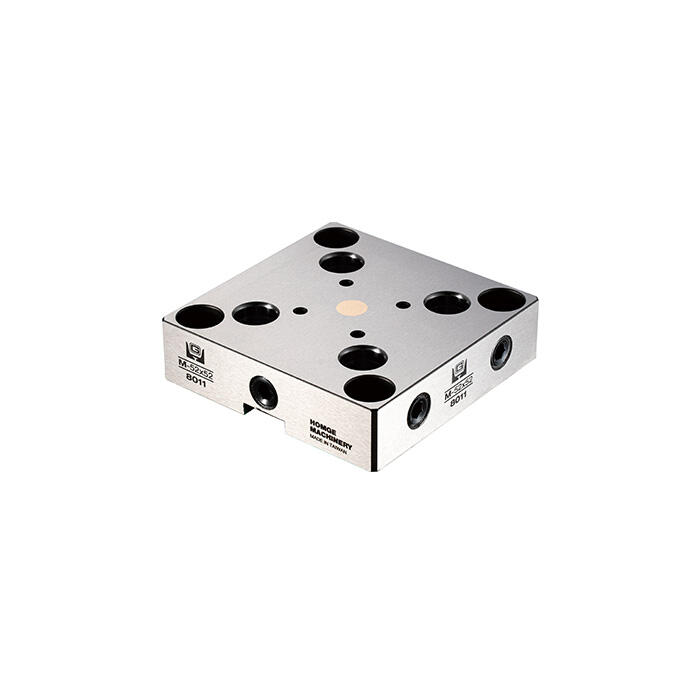

MASTER PALLET (Rectangular Plate, with clamping edge & mounting bores)

Model: M-52x52 (8001)



Model: M-96x96 (8051)

XXX



Unit: mm
ModelABCDEFGHWeight (kg)
M-52x5252+0.01100+0.0150+0.01-150116827+0.013
M-96x9696+0.01150+0.0150+0.01100+0.01192156827+0.015.5



Pull Stud

Model: M-52x52PS



Model: M-96x96PS






52 x 52 mm System

MASTER PALLET





Rectangular Plate,
without clamping edge & mounting bores
Model: M-52x52 (8002)



Round Plate

Model: M-52x25 (8004)









ADOPTER PLATE





Model: M-52x96 (8003)



Model: M-52x96 (8006)

XXX







COLUMN (Twin Base)





Model: M-52x52 (8008)





XXX









96 x 96 mm System

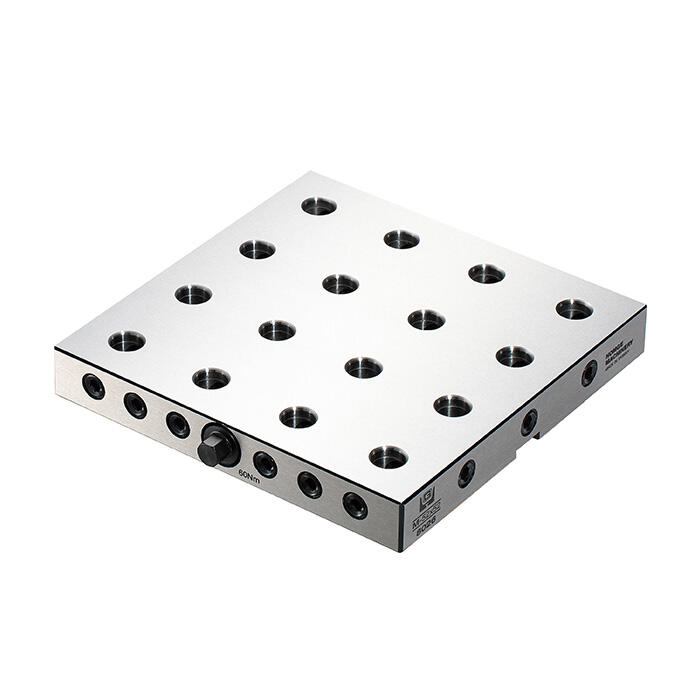

MASTER PALLET





Rectangular Plate,
without clamping edge & mounting bores
Model: M-96x96 (8052)



Round Plate

Model: M-96x96 (8053)

XXX

Round Plate,
without mounting bores

Model: M-96x96 (8054)



Round Plate,
with mounting bores for tables with 90° grooves
Model: M-96x96 (8057)









ADOPTER PLATE





Model: M-52x96 (8003)



Model: M-52x96 (8006)









ALUMINUM RISER





Model: M-96x96 (8202)



Model: M-96x96 (8202)
