RECTANGULAR MULTI PLATE/ GRID PLATE (for 4)
- Suitable for mounting several 5-axis vises at one processing.
- It can also be installed on the customer's own fixtures and tooling tombstones as a multi-clamping solution.
1. Modular design: Can be quickly assembled and adapted to different production needs, improving flexibility and scalability.
2. Compatible with 3-axis, 4-axis, and 5-axis machines and indexing plates, it is suitable for a wide range of processing applications and enhances production capacity.
3. High-precision positioning ensures accurate clamping of workpieces
4. Directly clamp the workpiece: Simplify the workpiece clamping process, reduce preparation time, and improve work efficiency.
5. Easy Operation and Maintenance

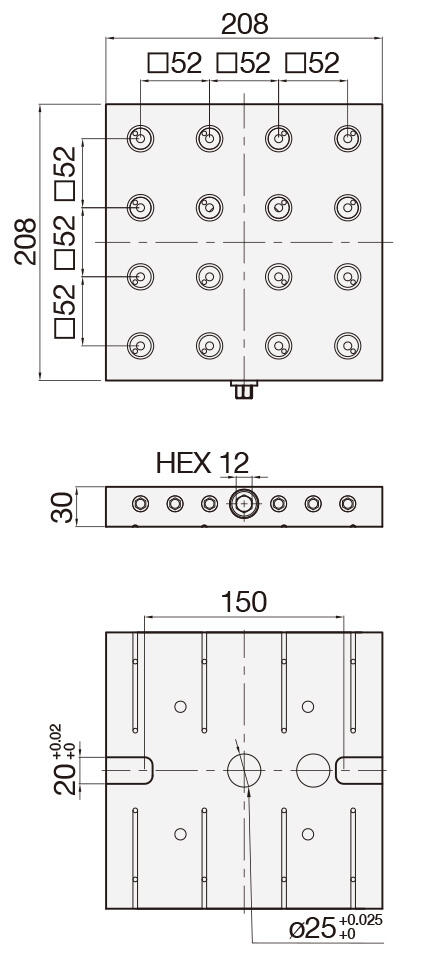

SPECIFICATIONS
Unit: mm
| Model | LxWxH | Pull Studs | Weight (kg) |
|---|---|---|---|
| M-52x52(8026) | 208x208x30 | M-52x52PS | 8.2 |
SPECIFICATIONS
Unit: mm
| Model | LxWxH | Pull Studs | Distance from Mounting Hole to Keyway | Weight (kg) |
|---|---|---|---|---|
| M-96x96(8066) | 384x384x30 | M-96x96PS | 100 | 29.2 |
| M-96x96(8066-B) | 384x384x30 | M-96x96PS | - | 29.2 |
