FIVE-AXIS ADJUSTABLE SELF-CENTERING VISE (ASC-S)

High-Rigidity Clamping | Automation Compatibility | 🎦VIDEO


  • Patented stud bolt seat design can efficiently calibrate the clamping center.
  • It is recommended to operate with a Master Plate on a five-axis machine.
  • Compatible with Robotic Arms.
  • 1.Vise body is made of High quality Steel (S50C) and its slideways gone through high-frequency hardening to achieve HRC50, which makes the whole part durable.
  • 2.Detachable jaws are made of High quality Tool Steel (SCM440) and gone through carburizing to achieve HRC50. Since both sides are fixed size and able to be used as a datum, users can reverse them to increase clamping range.
  • 3.The vise's clamping force can achieve 1300KG, the repeatability positioning precision of its clamping center is within ±0.02mm.
  • 4.Users can calibrate the clamping center of vise by adjusting the screws on both ends.
  • 5.The 45° dovetail structure with teeth on the upper jaw ensures the bottom of the workpiece to be firmly clamped.
  • 6.Applications: precision machining of four-axis, five-axis, CNC indexing table and vertical and horizontal CNC milling machines.
  •
  • Key features of five-axis self-centering vise showing self-centering mechanism, precision calibration adjustment, high clamping force up to 1300kg, anti-lift dovetail jaw design, and reversible SCM440 jaws for high precision CNC workholding
  • Workholding system compatible with zero-point quick change devices for fast setup in CNC machining
  •

STANDARD ACCESSORIES:
 • 4 pcs of Clamp
 • 1 pc of Wrench

OPTIONAL ACCESSORIES:
 • Zero Point Quick Change Devices
 • Pull Studs
 • Clamping Jaws



OPTIONAL CLAMPING JAWS:

Homge 5-axis self-centering vise flexible jaws for clamping round and irregular workpieces Flexi Jaws
Standard hard jaws for 5-axis self-centering vise providing high clamping force and repeatable positioning for precision CNC machining Standard Hard Jaws
Flat jaws for 5-axis self-centering vise, stable clamping for soft material machining Flat Jaws
Narrow jaws for 5-axis self-centering vise designed to prevent tool interference and provide clearance in high precision CNC machining Narrow Jaws
Soft jaws for 5-axis self-centering vise designed for custom profiling to securely hold irregular workpieces in CNC machining Soft Jaws
Quick Change Soft jaws for 5-axis self-centering vise allowing custom machining to match complex workpiece shapes and improve clamping accuracy Quick Change Soft Jaws Set

Technical Specifications of Five-Axis Self-Centering Vise ASC-S Series

SPECIFICATIONS (Material: Body S50C Steel, Slideways HRC 50 | Jaws: Alloy Steel SCM440, HRC 48-50)
Unit: mm
ModelABCC1C2C3DEFGHIJJ1J2KK1K2K3LMNOPPull StudsWeight (kg)
ASC-77x102S70432832858910M6102107771229.537242718377153524215M-52x52PS2.8
ASC-77x130S7043566011311710M6130135771229.537242718377181524215M-52x52PS3.5
ASC-77x170S70439610015315710M6170175771229.537242718377221524215M-52x52PS4.2
ASC-77x210S704313614019319710M6210215771229.537242718377261524215M-52x52PS4.9
ASC-127x160S8755707513313816M6160165127142.59.5452932203126218969024M-96x96PS9
ASC-127x210S875512012518318816M6210215127142.59.5452932203126268969024M-96x96PS11
ASC-127x260S875517017523323816M6260265127142.59.5452932203126318969024M-96x96PS13
ASC-127x310S875522022528328816M6310315127142.59.5452932203126368969024M-96x96PS15
ASC-127x360S875527027533333816M6360365127142.59.5452932203126418969024M-96x96PS17

Maximize Your Efficiency

Integrate this Vise with Zero Point Quick Change System to reduce setup time by 90%.

ViseVise
+
Pull StudsPull Studs
+
Base PlateBase Plate
=
Smart Clamping SystemIntegrated System
Explore More Zero Point Solutions

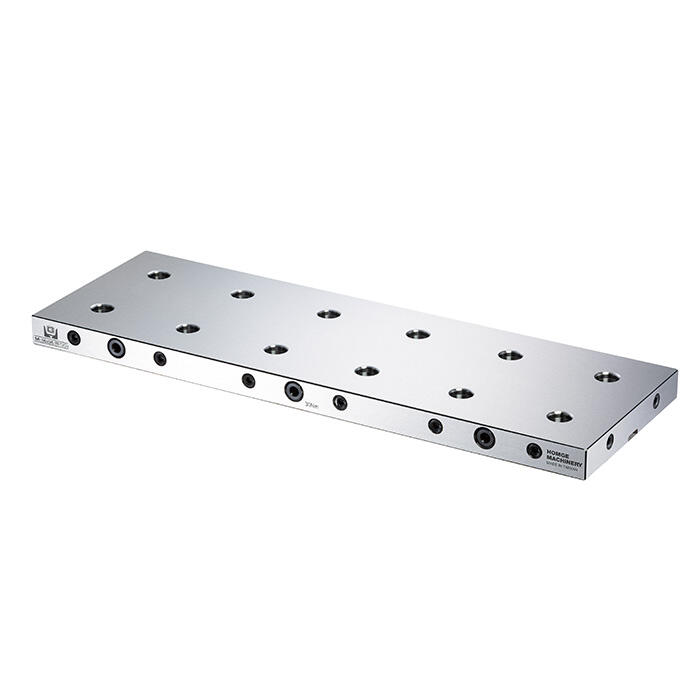

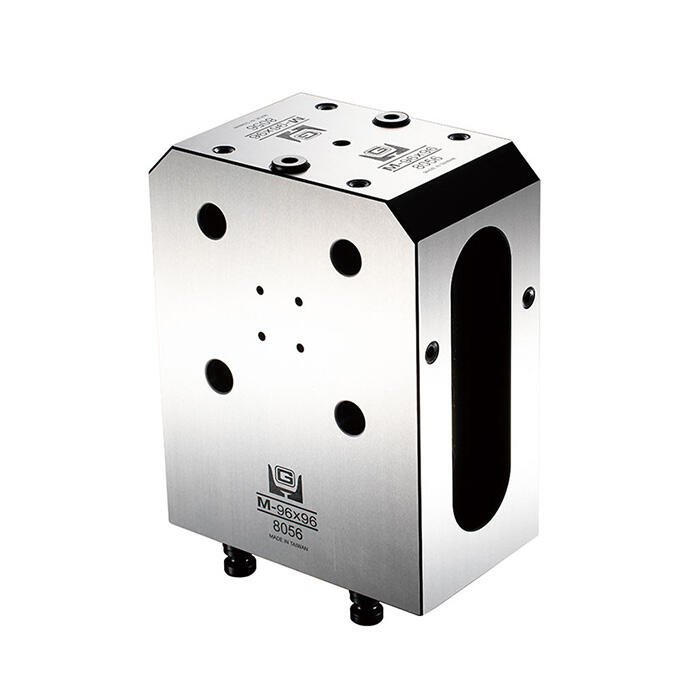

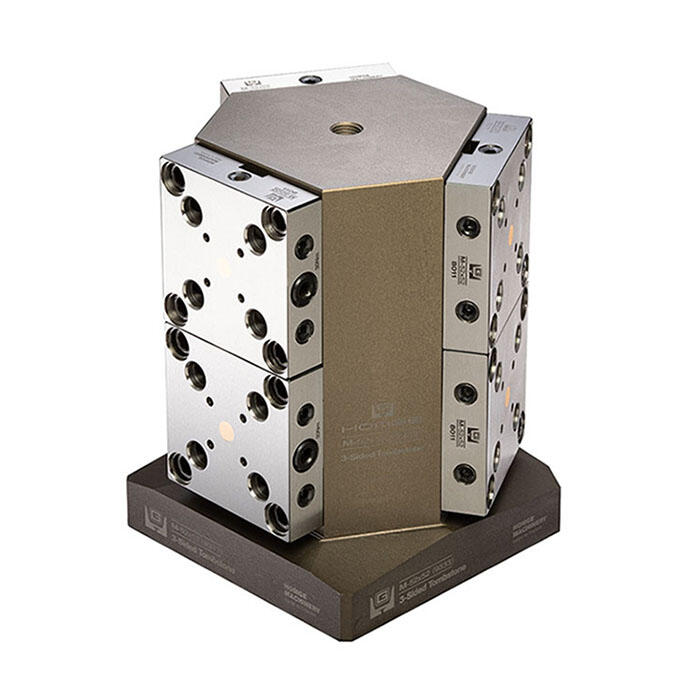

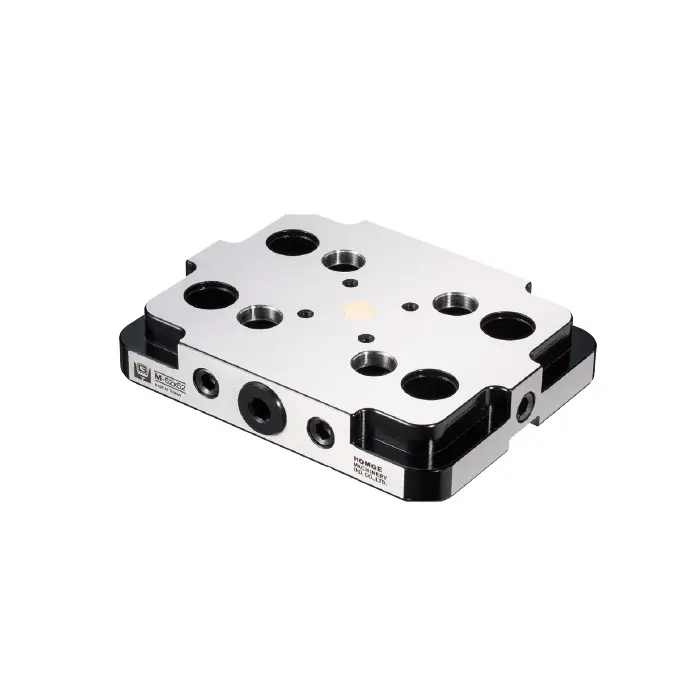

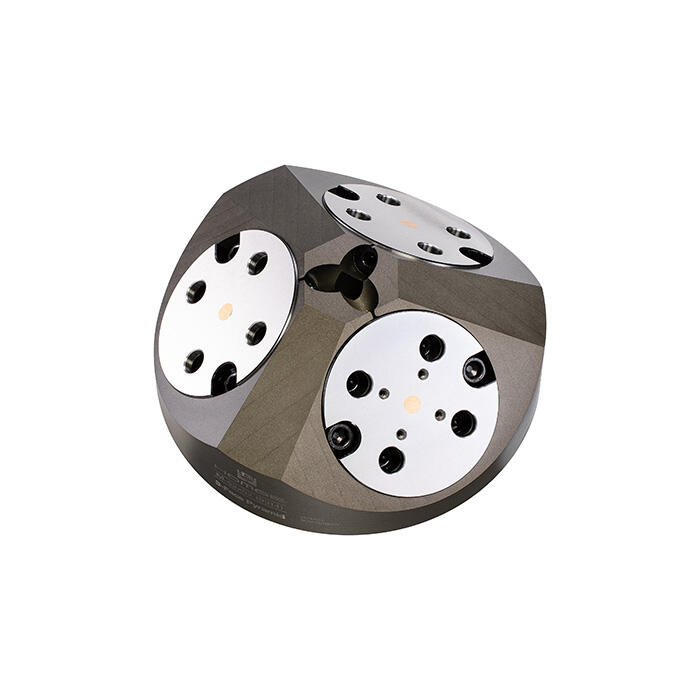

Zero point rectangular master plate for CNC machine table positioning Base Plate Multi-station zero point grid plate for mounting multiple vises Multi-Plate Precision riser block for 5-axis vise to provide spindle clearance Riser Zero point twin base station for dual vise setup on CNC machine Twin Base Zero point tombstone for horizontal machining centersTombstone Zero point clamping bridge for 4-axis indexing table applications 4-Axis Bridge 3-faced zero point pyramid for 5-axis multi-part clamping 3-Faced Pyramid Zero point adapter plate for cross-system compatibility between 52mm and 96mm pitch clamping devices Adapter Plate Versatile zero point combo plate with hybrid mounting patterns for flexible workpiece and vise clamping 52/96 Combo Series
