MULTI-POWER CNC SUPER VISE

Reduced Deflection by 50% (to 0.005mm) | Through-hole Angle-Lock Structure | Ideal for Large-scale Machining | 🎦VIDEO


  • Mechanical, good as heavy duty vise
  • Shortest Length with Big Jaw Opening
  • High Accuracy and Repeatability
  • Special MULTI-POWER design enhances clamping force of 0~8000KG
  • Suitable for Gantry-Type machining centers
  • 1.Vise Fixed Jaw is made of high quality steel and HARDENED to HRC 55º. Vise body is made of Ductile Iron above FCD 60 grade for high precision and durability. With a force of 4500kg, the shape will deflect less than 0.005mm.
  • 2.Slide ways are HARDENED to HRC 50º to further increase durability and maintain positioning height over long use.
  • 3.The Special ANGLE-LOCK SYSTEM with compact design and high-grade iron of over FCD 60 grade for high rigidity automatically pulls the work-piece down to the accurate position of within 0.005mm under 4500kg of pressure. This vise is most suitable for precision mould making on Machining Centers.

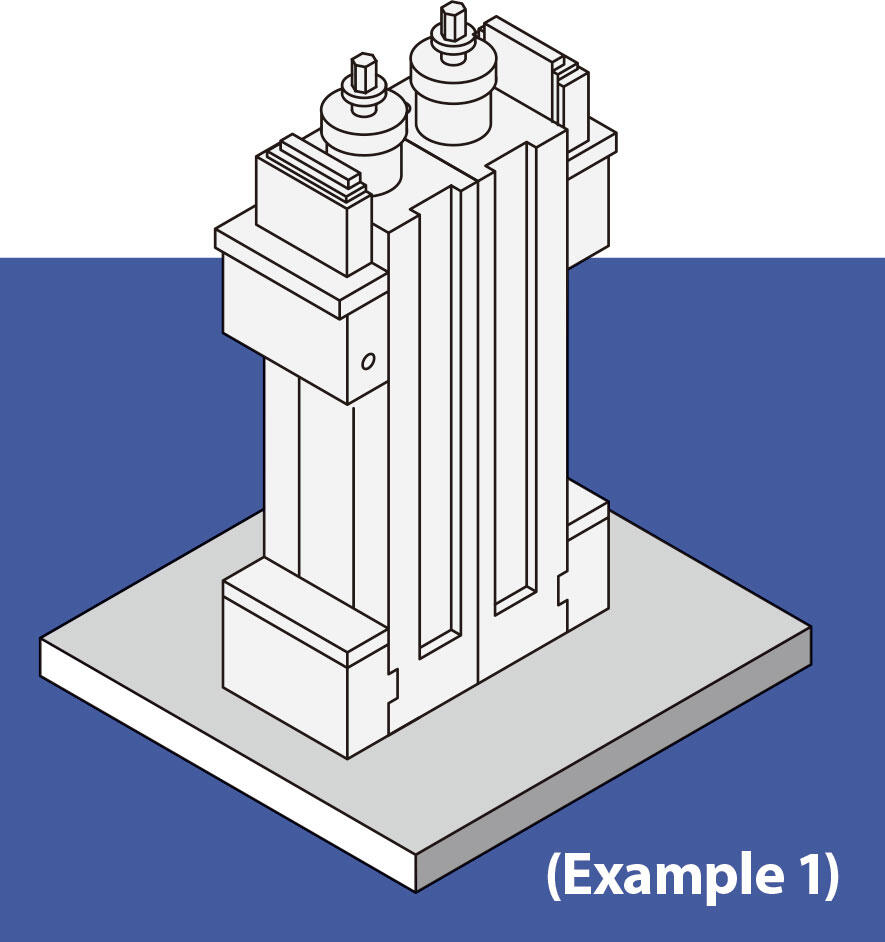

  • 4.Vise can be mounted horizontally or vertically.
  • 5.The patented MULTI-POWER SYSTEM built of HIGH GRADE BEARING STEEL doubles the clamping force.
    The pressure is more consistent and eliminates all leakage and maintenance problems associated with Hydraulic Vices.
    With the first half a turn the vise will clamp with 2500kg pressure.
    With a second half turn it will apply 4500kg of clamping force.
    This special patented system makes the clamping force constant.
  • 6.Adjusting stop ring: This simple and effective presetting device enables to preset each desired clamping force and it guarantees to repeat each clamping operation at the same clamping force.
HOMGE HPAQ Super High-Power Vise: Extra-large jaw opening and 8000kgf clamping force for large mold components and heavy CNC machining

Multiple CNC vises combined for large workpiece machining setup

Fixed height so several vices can be used together.

This vise is highly suitable for precision mould making on machining centers as well as heavy duty machining which require high clamping force with high accuracy.


Technical data for HPAQ-160, HPAQ-200 and HPAQ-250 multi-power CNC super vises for CNC precision mold making.

SPECIFICATIONS (Material: Ductile Iron FCD60 | Slideways Hardness HRC 50)
Unit: mm
ModelABCC1DEFGHIJJ1KK1LMMax. Clamping ForceWeight (kg)
HPAQ-160168115±0.010-300195-49057±0.021856067716019152153631171458000kg73
HPAQ-200187120±0.010-350220-57066±0.021863775420019182566751171688000kg120
HPAQ-250187120±0.010-450220-67066±0.021874686325019182466751171688000kg140
HPAQ-160L-400168115±0.010-400206-60057±0.021866579216019152153631171458000kg83
HPAQ-160L-500168115±0.010-500206-70057±0.021876589216019152153631171458000kg92
HPAQ-160L-650168115±0.010-650206-86057±0.0218925104216019152153631171458000kg107
HPAQ-200L-500187120±0.010-500220-72066±0.021880692320119182466751171688000kg144
HPAQ-200L-600187120±0.010-600220-82066±0.0218910102720119182466751171688000kg160
HPAQ-200L-850187120±0.010-850220-107066±0.02181156127320119182466751171688000kg190
HPAQ-200L-1140187120±0.010-1140236-137066±0.02181446156320119182466751171688000kg217

STANDARD ACCESSORIES:

Included Alignment Wedges ensure rapid positioning on CNC machine tables

  • 2 pcs of Alignment Wedge
  • 4 pcs of Clamp
  • 1 pc of Handle



OPTIONAL ACCESSORIES:

Enhance machining flexibility with HOMGE Optional Jaws: including Cross Grooved, Step, and V-Jaws for round workpieces. Our Combined and Front-Back Outer Jaws expand clamping capacity for diverse CNC milling tasks
