FIVE-AXIS ADJUSTABLE SELF-CENTERING VISE (ASC-K)

Features a reinforced design for larger workpieces, offering superior rigidity and heavy-duty stability compared to the standard ASC-S and ASC-M series | 🎦VIDEO


  • High rigidity due to reinforced stud bolt seat and hard jaws, suitable for machining large workpieces
  • Applicable to all machine tool models. With the patented center positioning threaded pin, users can regulate clamping center easily and rapidly.
  • All ASC-Series Vises are dedicated to consistency in materials and manufacturing processes.
        • 1.Vise body is made of High quality Steel (S50C) and its slideways gone through high-frequency hardening to achieve HRC50, which makes the whole part durable.
        • 2.Detachable jaws are made of High quality Tool Steel (SCM440) and gone through carburizing to achieve HRC50. Since both sides are fixed size and able to be used as a datum, users can reverse them to increase clamping range.
        • 3.The vise's clamping force can achieve 1300KG, the repeatability positioning precision of its clamping center is within ±0.02mm.
        • 4.With the patented center positioning threaded pin, users can regulate clamping center easily and rapidly.
        • 5.The 45° dovetail structure with teeth on the upper jaw ensures the bottom of the workpiece to be firmly clamped.
        • 6.Applications: precision machining of four-axis, five-axis, CNC indexing table and vertical and horizontal CNC milling machines.
        •

STANDARD ACCESSORIES:

 • 4 pcs of Clamp
 • 1 pc of Wrench

OPTIONAL ACCESSORIES:

 • Zero Point Quick Change Devices
 • Pull Studs


Technical data and dimensions for HOMGE ASC-K Five-Axis Adjustable Self-Centering Vise - High Precision CNC Workholding

SPECIFICATIONS (Material: Body S50C Steel, Slideways HRC 50 | Jaws: Alloy Steel SCM440, HRC 48-50)
Unit: mm
ModelABCC1C2C3DEFGHIJJ1J2KK1K2K3LNOPQRPull StudsWeight (kg)
ASC-130x310K804819419925025512M6310326130102.525582932203126969024102M12M-96x96PS13.6
ASC-160x310K804819419925025512M6310326160102.525582932203156969024102M12M-96x96PS17.4

Base Plates
for 96mm System52 / 96 Combo

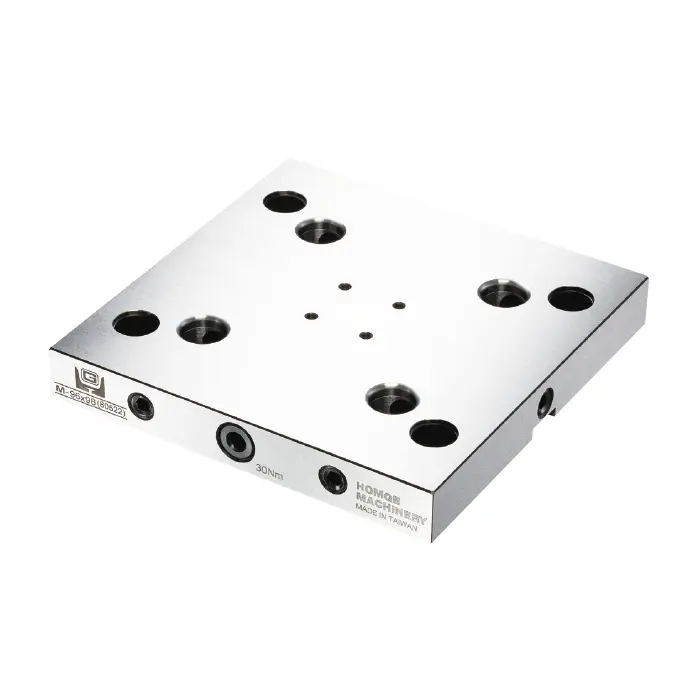

HOMGE Zero-Point Rectangular Single Plate for 96mm pull studs
M-96x96 (8051)
 HOMGE Integrated 52/96mm Zero-Point Rectangular Clamping Plate
M-52/96 (8287)

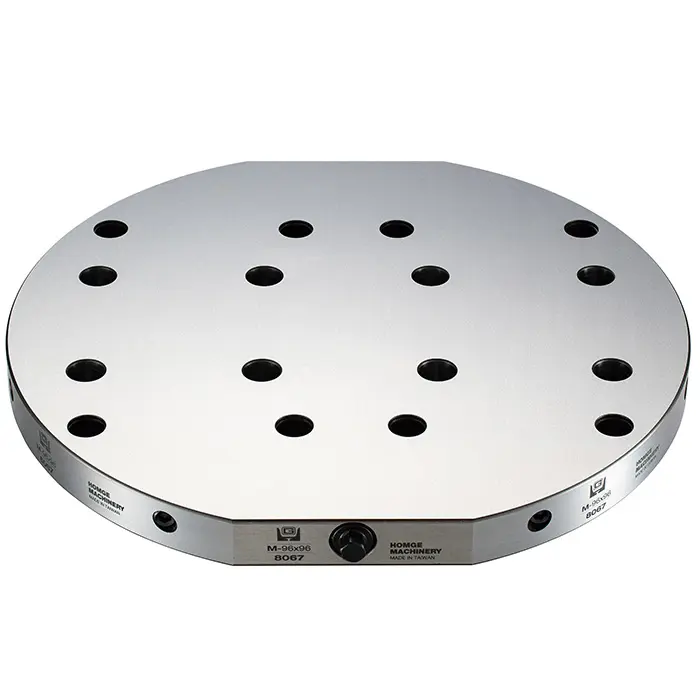

HOMGE Zero-Point Quick Clamping Round Plate (96mm)
M-96x96 (8053)
 HOMGE Integrated 52/96mm Zero-Point Round Clamping Plate
M-52/96 (8288)
Twin Bases / Multi-Clamping
for 96mm System52 / 96 Combo
HOMGE Zero-Point Twin Base for 96mm clamping system
M-96x96 (8056)
 HOMGE CNC Zero-Point Quick Clamping Twin Base | 52mm & 96mm Workholding System
M-52/96 (8056G)
Risers
for 96mm System52 / 96 Combo
HOMGE Zero-Point Rectangular Riser for 96mm clamping studs
M-96x96 (8222/8226)
 HOMGE Zero-Point Combo Rectangular Riser for bothe 52mm and 96mm clamping system
M-52/96 (8282/82822)
More Quick Change Devices:

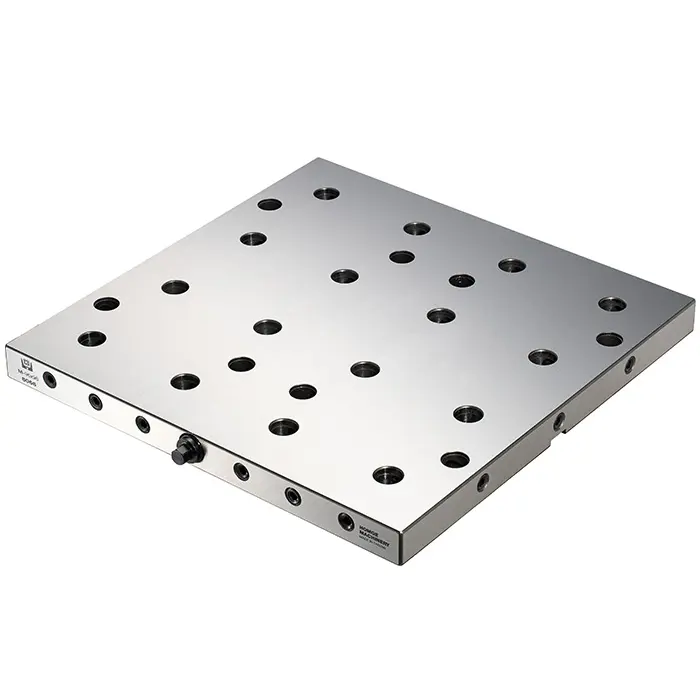

HOMGE Multi-Grid Plate for Zero-Point System
