52/96 COMBO ROUND PLATE


  • Standardized Compatibility: These combo series support two standardized grid sizes, 52 mm and 96 mm, allowing compatibility with all vise sizes from HOMGE.


1. Versatile Integration: Supports both rectangular and round plates or risers for flexible machining setups.

2. Optimized Space: Compact round design ideal for machine tools with limited bed space.

3. Quick Changeover: Minimizes positioning time and reduces accumulated tolerances.

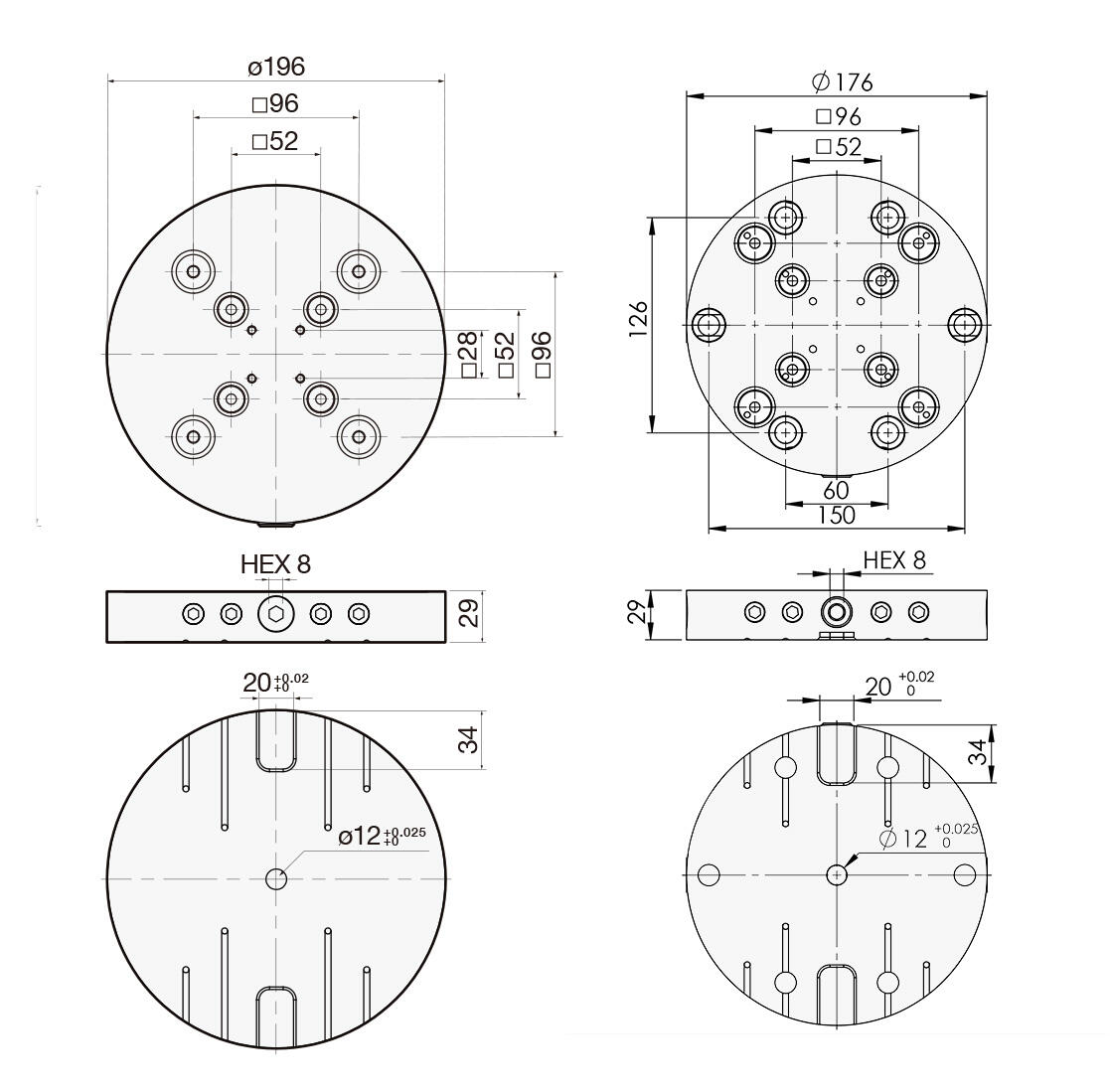

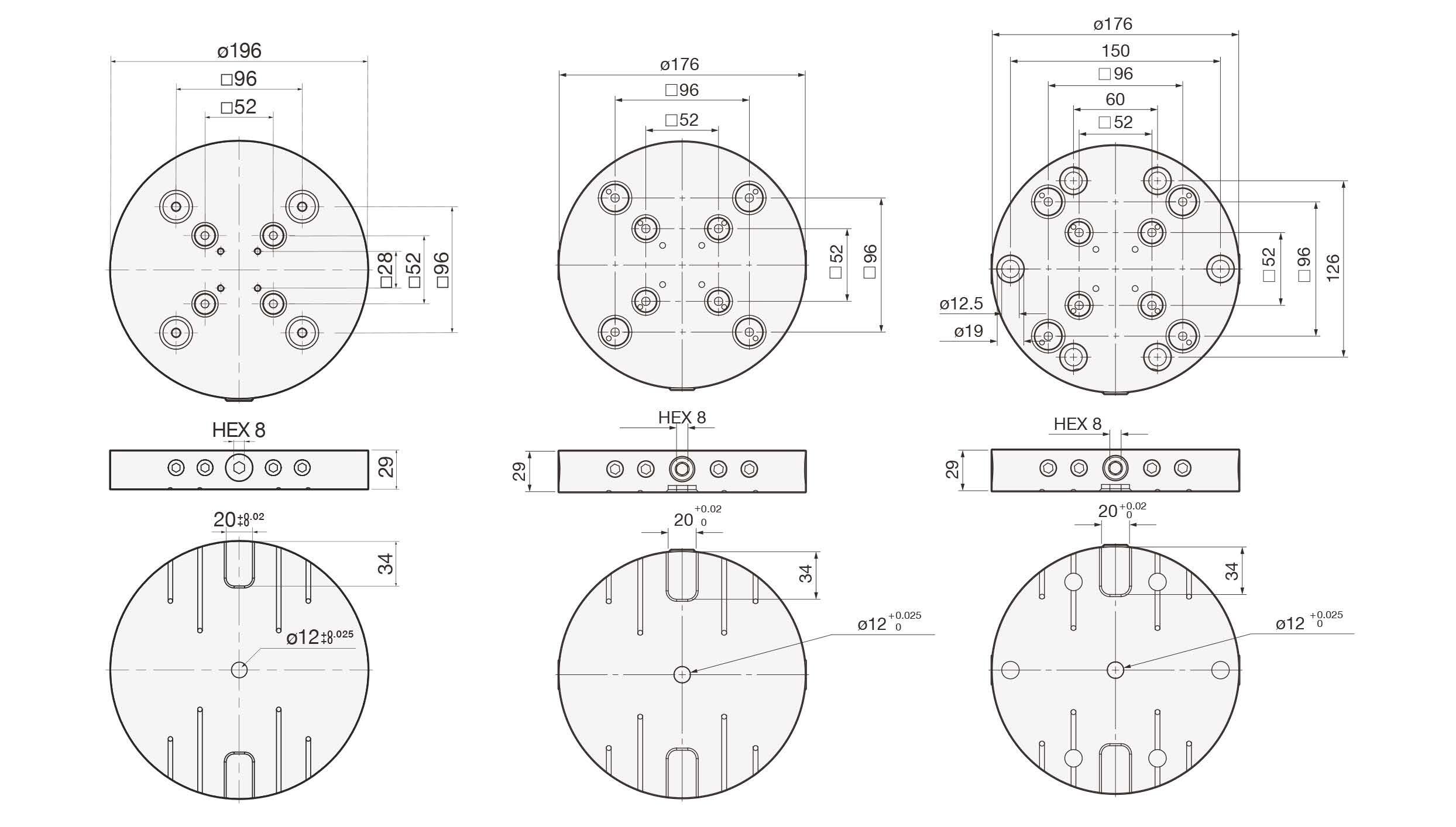

Technical dimensions for 52/96 Combo Round Plate: Ø196mm and Ø176mm diameter specifications

SPECIFICATIONS
Unit: mm
ModelLxWxHPull StudsMounting HolesWeight (kg)
M-52/96(8288)Ø196x29M-52x52PS / M-96x96PS-6.2
M-52/96(8286)Ø176x29M-52x52PS / M-96x96PS-4.7
M-52/96(8286-M)Ø176x29M-52x52PS / M-96x96PS150x1264.5
