Quick Point Combo Plate for both 52 and 96 clamping system
Quick Point Combo Plate for both 52 and 96 clamping system

52/96 COMBO RECTANGULAR PLATE -G


  • Two-in-One Interface: This rectangular combo plate supports both 52 mm and 96 mm standardized stud configurations, and is fully compatible with the entire  ASC-S, ASC-M, and ASC-K Self-Centring Vise lineup.
  • 1.Modular Flexibility: Features a modular design for rapid configuration, allowing swift adaptation to diverse production demands while maximizing scalability.
  • 2.Wide Compatibility: Engineered for seamless integration with 3-axis, 4-axis, and 5-axis machines and indexing plates, suitable for a wide range of processing applications.
  • 3.High-precision positioning: Ensures accurate clamping of workpieces to maintain stable production quality.
  • 4.Direct Clamping: Simplifies the workpiece clamping process, reducing preparation time and improving work efficiency.
  • 5.Easy Operation and Maintenance.

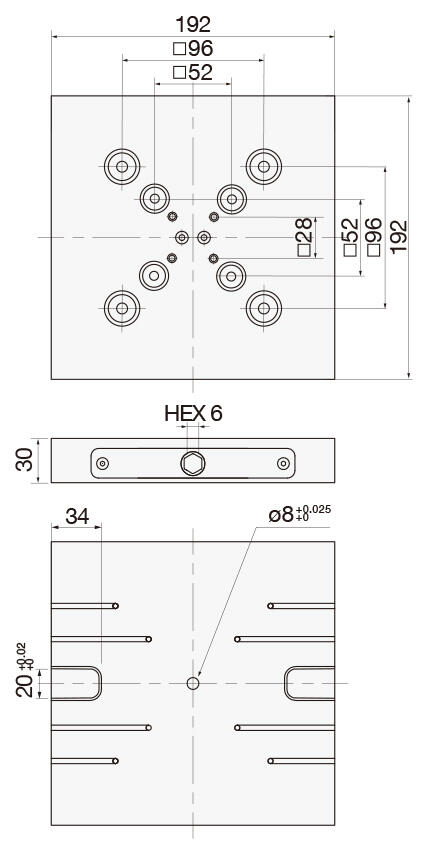

Technical dimensions for M-52/96 (8287G) Combo Plate: Multi-pitch Zero-Point specifications (52mm and 96mm)

SPECIFICATIONS
Unit: mm
ModelLxWxHPull StudsMounting HolesWeight (kg)
M-52/96(8287G)192x192x30M-52x52PS / M-96x96PS-9.4
